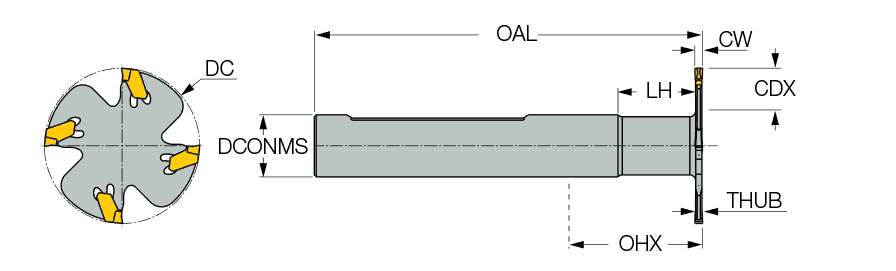

| Cutting Diameter (DC) | 40 mm | Tool Type | Slitting cutters |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Cutting Item Count (CICT) | 4 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Functional Length (LF) | 76 mm |
| Overall Length (OAL) | 100 mm | Master Insert Identification (MIID) | GSFN 1.6 |
| Shank Type | Weldon | Connection Code Machine Side (CCMS) | Weldon |
| Application | | Side Slotting | Slitting | Slotting | T Slotting | | Unit | M |
| Measurement Type | Metric |
Product Features
| FamilyDesc | Grooving and slitting cutters with integral weldon shanks. | FamilyName | SGSF-W |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.2070
Name

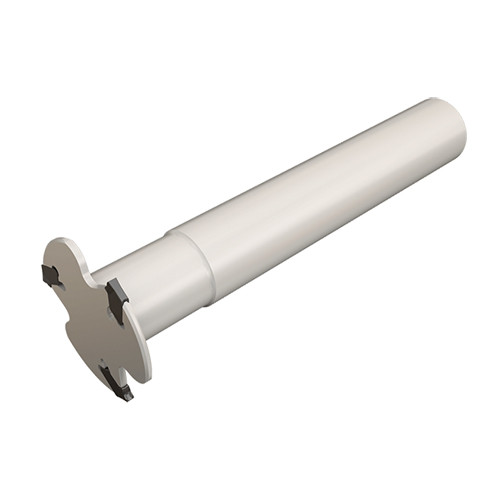

Disc w/Shank Indexable Slotting Cutters
FamilyName
SGSF-W
BrandName
Iscar
