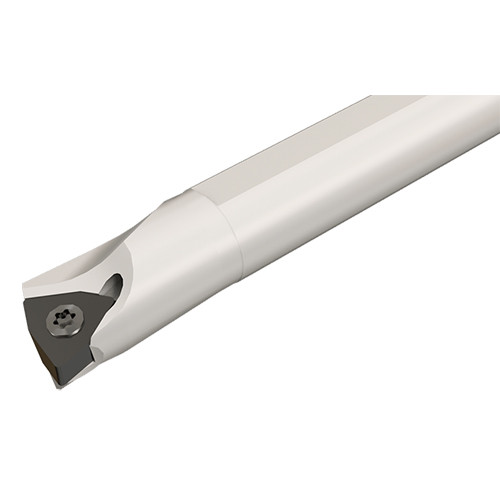

A10K SWLNL-04
Boring bars with steel and carbide shanks for small diameters, carrying WNGP 0403.. trigon inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter.
Price: Log in For Price

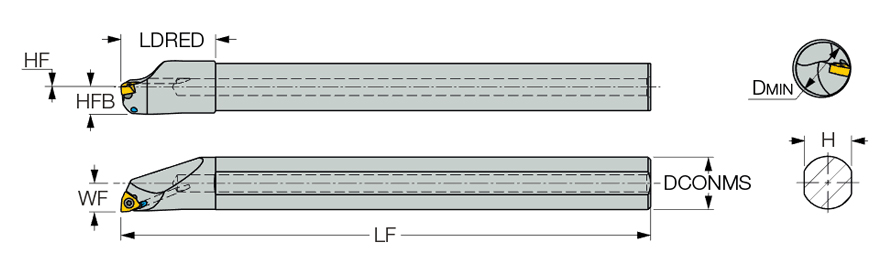

| Connection Diameter Machine Side (DCONMS) | 10 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 125 mm | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 20 mm | Rake Angle Axial (GAMP) | -10 Degrees |
| Shank Height (H) | 9 mm | Rake Angle Radial (GAMF) | -16 Degrees |
| Functional Width (WF) | 6 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNGP 04 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 12 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
Product Features
| FamilyDesc | Boring bars with steel and carbide shanks for small diameters, carrying WNGP 0403.. trigon inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | FamilyName | A/E-SWLNR/L-04 |
| Remarks | Use left-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole. | BrandName | Iscar |
| COO | Japan |
Shipping Info
PackageWeight
0.0870
Name
Indexable Internal Turning Tools
FamilyName
A/E-SWLNR/L-04
BrandName
Iscar
