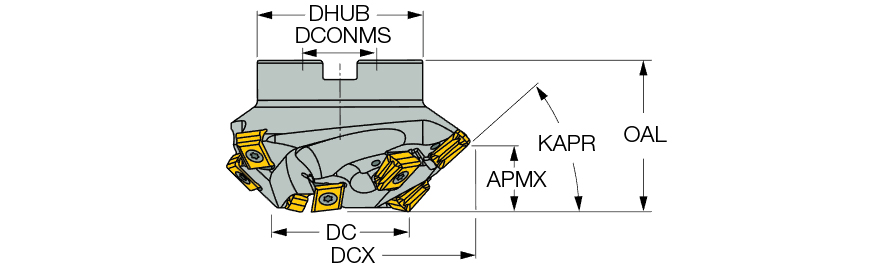

| Application | | Facing | Slanted Shoulder & Chamfer | | Arbor Style | A |
| Cutting Item Count (CICT) | 9 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 23.5 mm | Cutting Diameter Maximum (DCX) | 98.2 mm |
| Cutting Diameter (DC) | 50 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Body Material | Steel |
| Flute Count (NOF) | 3 | Tool Type | 45° Facemills |
| Overall Length (OAL) | 55 mm | Hub Diameter (DHUB) | 60 mm |
| Master Insert Identification (MIID) | T490 LNMT 1306PNTR | Unit | M |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features

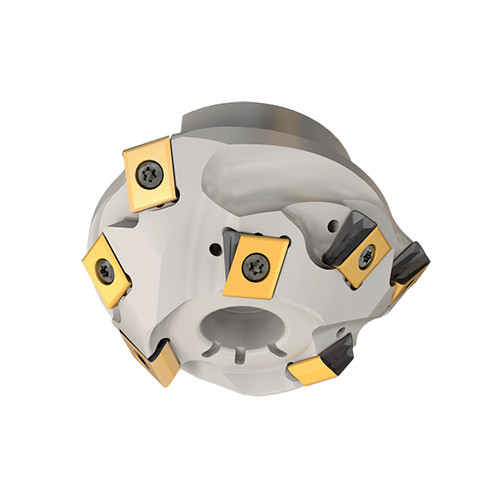

| FamilyDesc | Conical extended flute shell mills carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, 13 mm long cutting edges. | FamilyName | T4..-SM Conical Shell Mills |

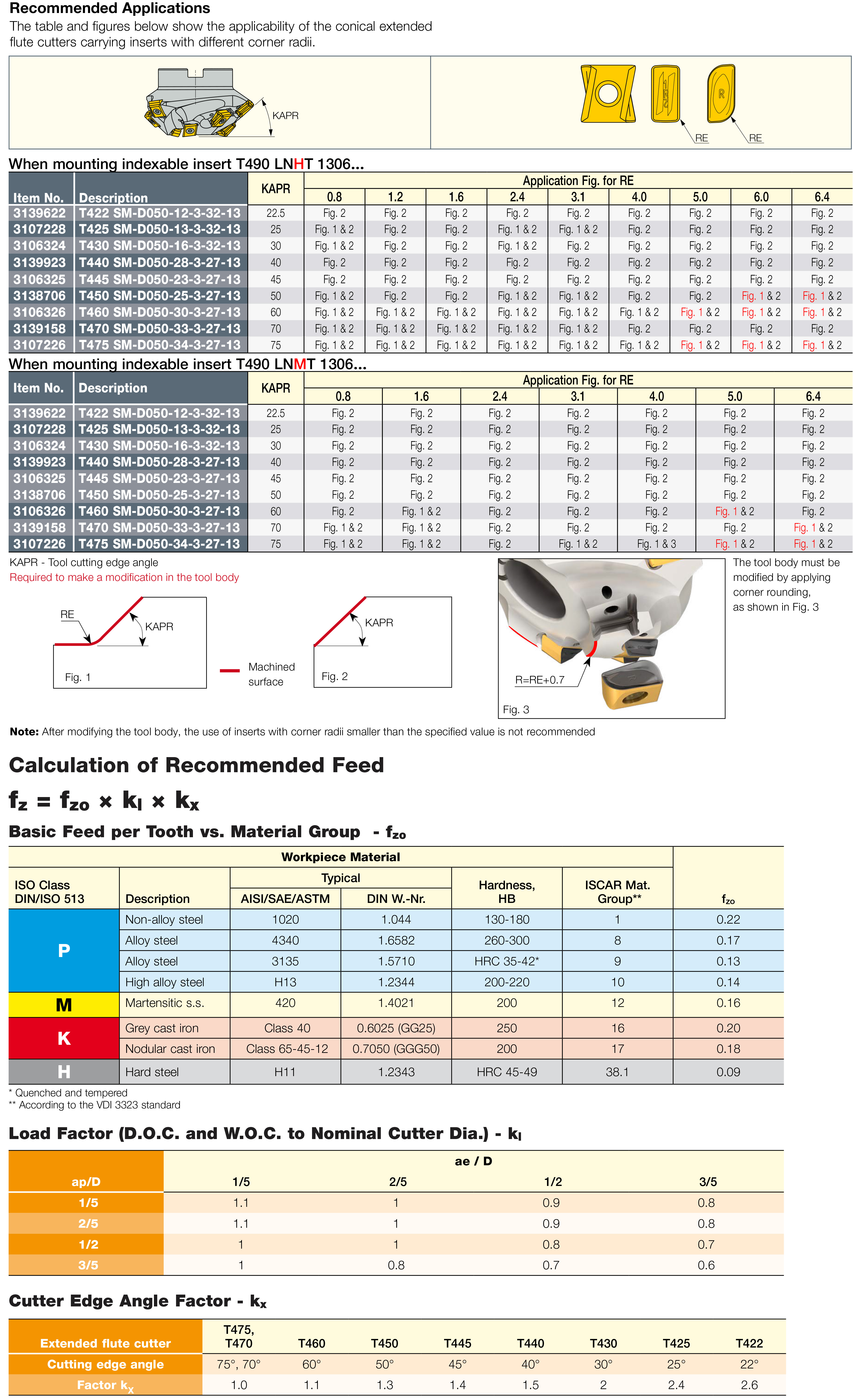

| Remarks | Note: RPM should be considered according to the recommended speed applied on the outer diameter obtained by the specific D.O.C. For calculating feed recommendations, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
1.4590
Name
Shell Mills
FamilyName
T4..-SM Conical Shell Mills
BrandName
Iscar
