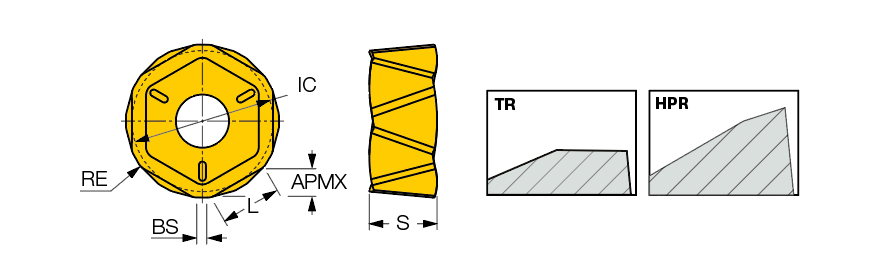

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.65 mm/tooth |
| Application | | Facing | Fast Feed Milling | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 6.43 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.6 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 3 mm | Minimum Feed per Tooth (fz(min)) | 0.25 mm/tooth |
| Insert Thickness (S) | 7.15 mm | Number of Cutting Edges | 12 |
| Insert Included Angle (EPSR) | 120 Degrees | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Unit | M |
Product Features

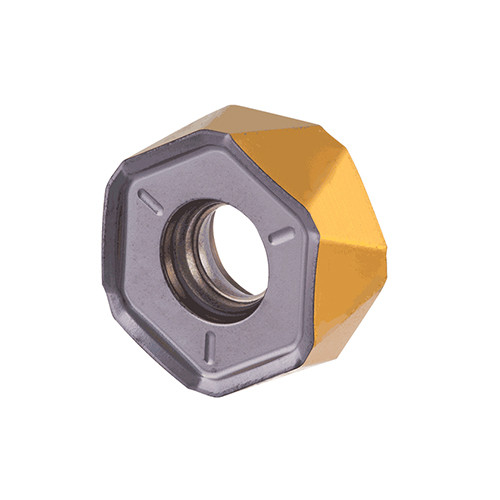

| FamilyDesc | Double-sided hexagonal inserts with 12 cutting edges. | FamilyName | H1200 HXCU 0606 |
| Remarks | TR-for steel and cast iron, HPR-for stainless steel and high temperature alloys | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0150
Name
Milling Indexable Inserts
FamilyName
H1200 HXCU 0606
BrandName
Iscar
