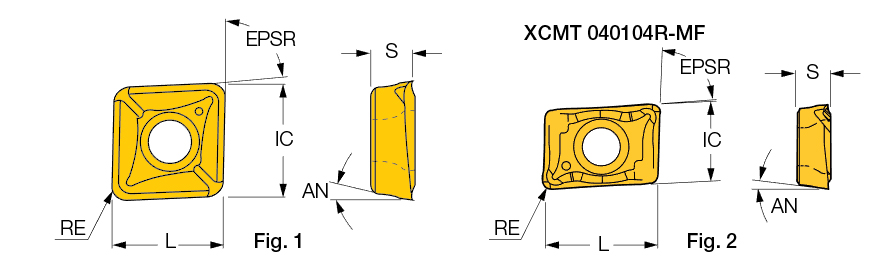

| Cutting Edge Length (L) | 10.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 3.97 mm | Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 83.5 Degrees | Tool Type | Indexable drilling inserts |
| Inscribed Circle Diameter (IC) | 10.5 mm | Measurement Type | Metric |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
| Application | | Drilling Ext Face Int. Turning | |
Product Features

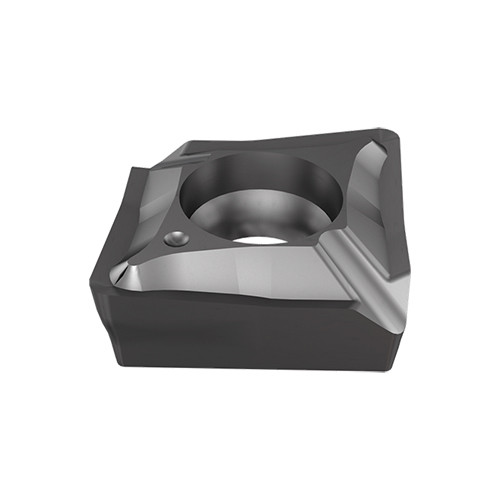

| FamilyDesc | Inserts for DR-MF multifunction tools. Two cutting edges for hard materials and interrupted cut. Low cutting forces due to high cutting edges and positive angles. | COO | Korea |
| Remarks | For cutting recommendations, click on More Info |
Shipping Info
PackageWeight
0.0059
