TOGT 080305-GF IC908

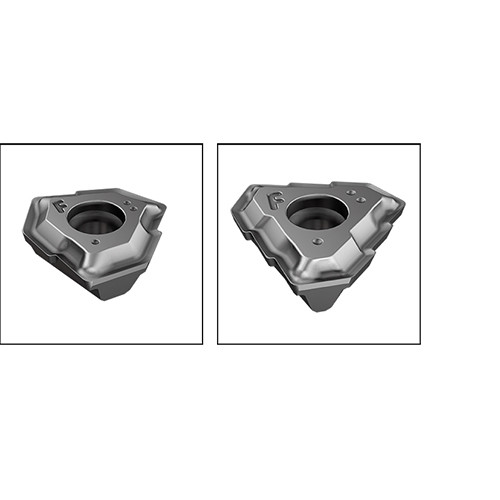

Deep drilling inserts with 3 chip splitting cutting edges, a positive rake chipbreaker and a wiper for high hole surface quality.
Price: Log in For Price

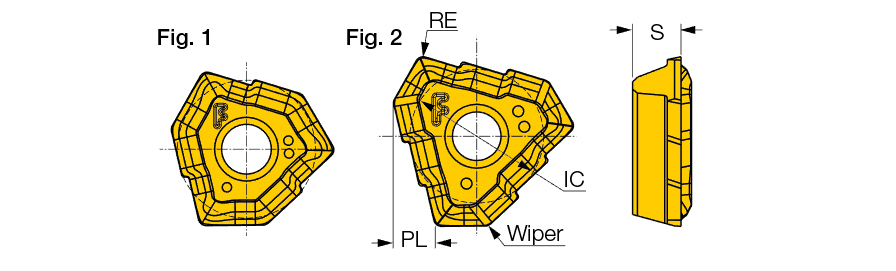

| Insert Thickness (S) | 2.8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 8.55 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.5 mm | Tool Type | Gun Drill Inserts |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Application | | Deep Drilling | Drilling | Gundrills | | Unit | M |
Product Features
| FamilyDesc | Deep drilling inserts with 3 chip splitting cutting edges, a positive rake chipbreaker and a wiper for high hole surface quality. | COO | Israel |
Shipping Info
PackageWeight
0.0032
