| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Min D.O.C. | 0.5 mm |
| Insert Style | CCMT | Depth of Cut Maximum (APMX) | 2.5 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.06 mm/rev |
| Insert Size | 09T304 | Max. Turning Feed (ft(max)) | 0.25 mm/rev |

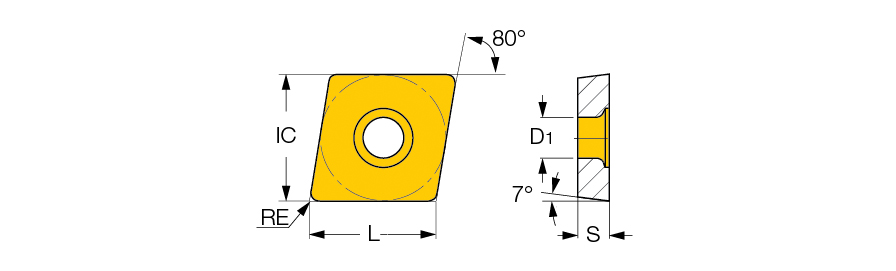

| Cutting Edge Length (L) | 9.7 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 3.97 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | SM |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Grade | IC806 | Unit | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
Product Features
| FamilyDesc | Single-sided turning inserts for semi finishing and finishing. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for soft materials and exotic alloys. | FamilyName | CCMT/CCGT-SM |
| Remarks | For dimensions and tolerances, Click on More Info | BrandName | Iscar |
| COO | Israel |
