PICCO R 010.1005-10N IC908

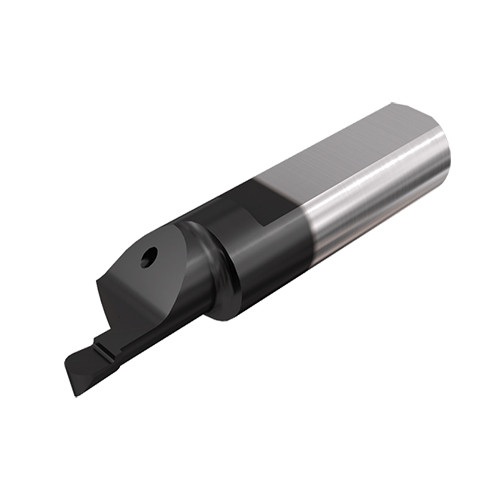

PICCO-JETCUT Inserts with internal coolant channel for profile face grooving at Dmin 8 mm
Price: Log in For Price

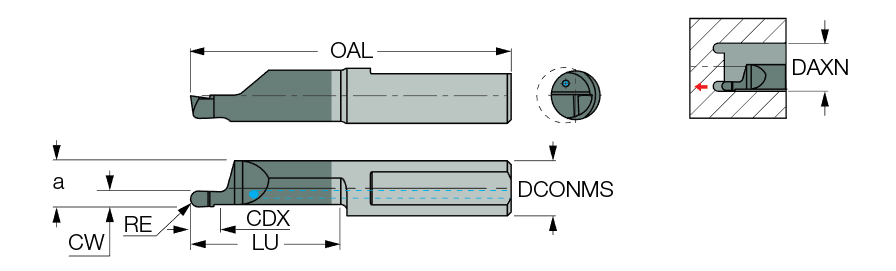

| Connection Diameter Machine Side (DCONMS) | 7.05 mm | Corner Radius (RE) | 0.5 mm |
| Functional Length (LF) | 32 mm | Usable Length (LU) | 9 mm |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | IC908 | Tool Type | Face Solid, Grooving &Turning grooving |
| Application | | Face Grooving | Int. Face Grooving | | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Front End Width (a) | 5.9 mm |
Product Features
| FamilyDesc | PICCO-JETCUT Inserts with internal coolant channel for profile face grooving at Dmin 8 mm | FamilyName | PICCO-010-N (Full Radius for Face Grooving) |
| Remarks | Only right-hand inserts are available as standard, left-hand inserts on request Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only | BrandName | Iscar |
| COO | Germany |
Shipping Info
PackageWeight
0.0170
Name
Solid Boring Bars
FamilyName
PICCO-010-N (Full Radius for Face Grooving)
BrandName
Iscar
