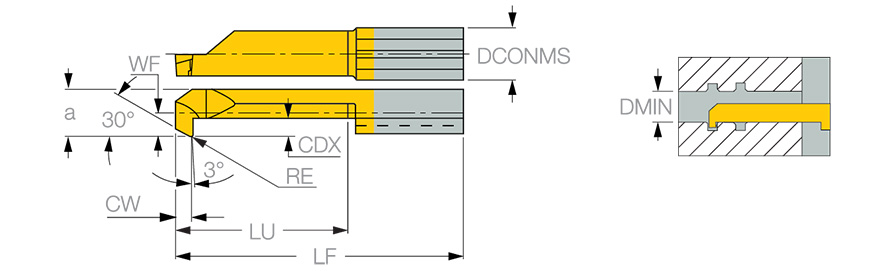

| Connection Diameter Machine Side (DCONMS) | 5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.2 mm | Application | | Int. Back Boring and Profiling | |
| Cutting Width (CW) | 1.5 mm | Tool Type | Solid Carbide Turn Tool |
| Cutting Depth Maximum (CDX) | 1 mm | Minimum Bore Diameter (DMIN) | 5 mm |
| Overall Length (OAL) | 35 mm | Front End Width (a) | 4.4 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC228 | Unit | M |
Product Features
| FamilyDesc | Inserts for internal back turning | FamilyName | PICCO R/L 080 |
| Remarks | Specify right- or left-hand bars | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0100
Name
Solid and Brazed Groove/Turn & Part Off
FamilyName
PICCO R/L 080
BrandName
Iscar
