RM-BN7-17.000-H7SA IC908

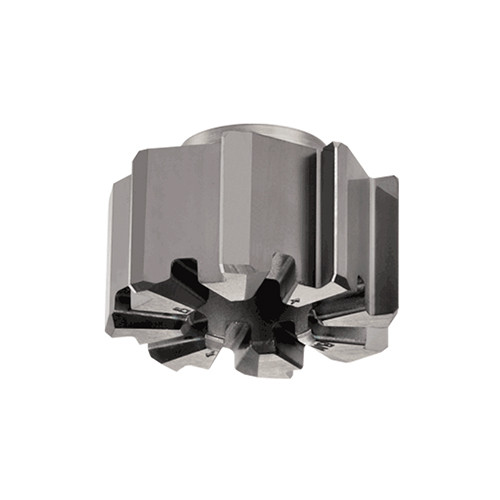

Interchangeable straight flute solid carbide reaming heads (shell reamers), with a quick change bayonet mechanism for H7 hole tolerance high speed reaming.
Price: Log in For Price

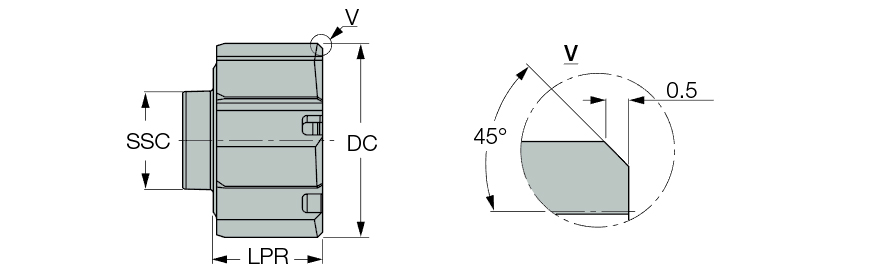

| Cutting Diameter (DC) | 17 mm | Coating | TiAlN |
| Cutting Edge Length (L) | 10.7 mm | Cutting Direction (HAND) | Straight |
| Insert Seat Size Code (SSC) | BN7 | Tool Type | Shell Reamers / BAYO Heads |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 0.5 Degrees | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| FamilyDesc | Interchangeable straight flute solid carbide reaming heads (shell reamers), with a quick change bayonet mechanism for H7 hole tolerance high speed reaming. | COO | Israel |

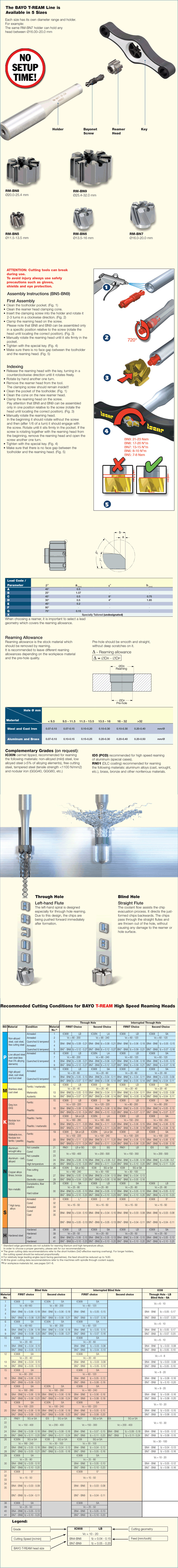

| Remarks | For user guide, click on More Info |
Shipping Info
PackageWeight
0.0390
