RM-BN8-21.000-H7LB IC908

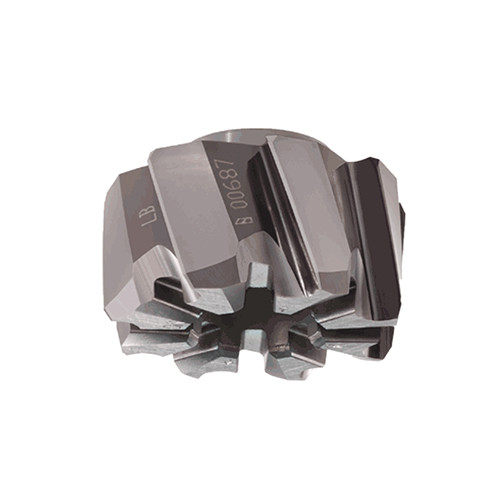

Interchangeable left-hand flute solid carbide reaming heads (shell reamers) with a quick change bayonet mechanism for H7 hole tolerance high speed reaming through holes.
Price: Log in For Price

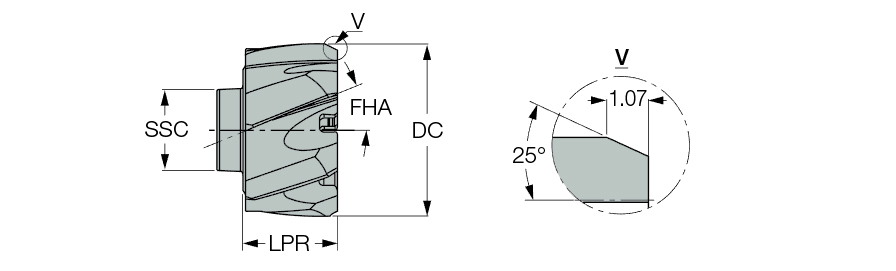

| Cutting Diameter (DC) | 21 mm | Coating | TiAlN |
| Cutting Edge Length (L) | 12.9 mm | Cutting Direction (HAND) | Right Hand |
| Insert Seat Size Code (SSC) | BN8 | Tool Type | Shell Reamers / BAYO Heads |
| Flute Count (NOF) | 8 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 20 Degrees | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| FamilyDesc | Interchangeable left-hand flute solid carbide reaming heads (shell reamers) with a quick change bayonet mechanism for H7 hole tolerance high speed reaming through holes. | COO | Israel |
| Remarks | For user guide, click on More Info |
Shipping Info
PackageWeight
0.0550
