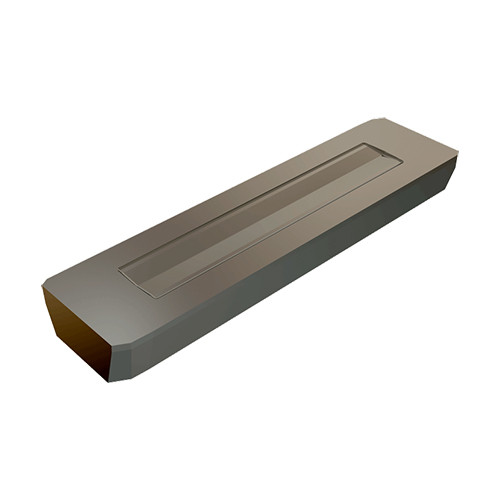

RM-SEI-1B-06 IC507
Single Edge Reamer Inserts for General Applications at High Cutting Speeds
Price: Log in For Price
| Insert Seat Size Code (SSC) | 1.0 | Coating | TiCN+TiN |
| Angle | 6 Degrees | Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | |

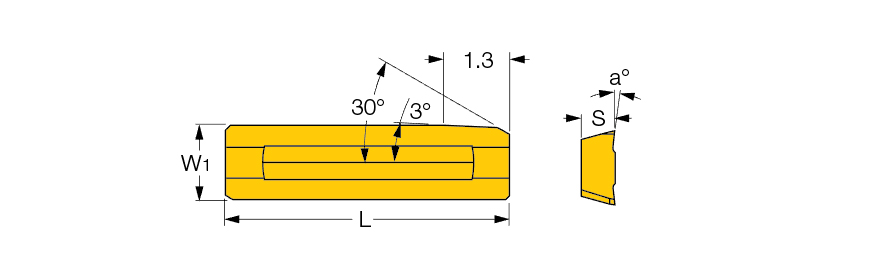

| Cutting Edge Length (L) | 15.5 mm | Tool Type | Reaming Regular Inserts. |
| Insert Width (W1) | 2.8 mm | Measurement Type | Metric |
| Insert Thickness (S) | 1.5 mm | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Grade | IC507 | Unit | M |
Product Features
| FamilyDesc | Single Edge Reamer Inserts for General Applications at High Cutting Speeds | COO | Israel |
| Remarks | Lead type of insert should be compatible with lead type of the tool |
Shipping Info
PackageWeight
0.0013
