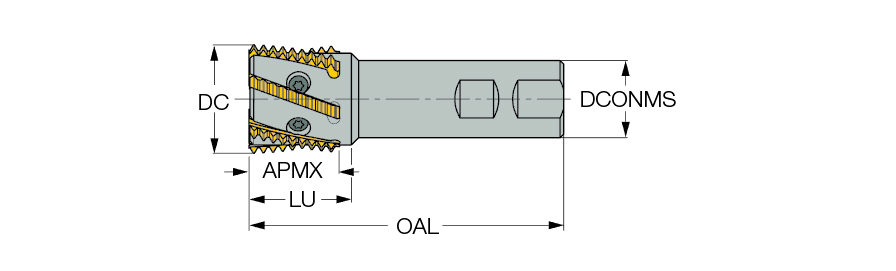

| Cutting Diameter (DC) | 0.91″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1.063″ | Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 4-1/2″ | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Usable Length (LU) | 2″ | Thread Type (TTP_DF2) | INT |

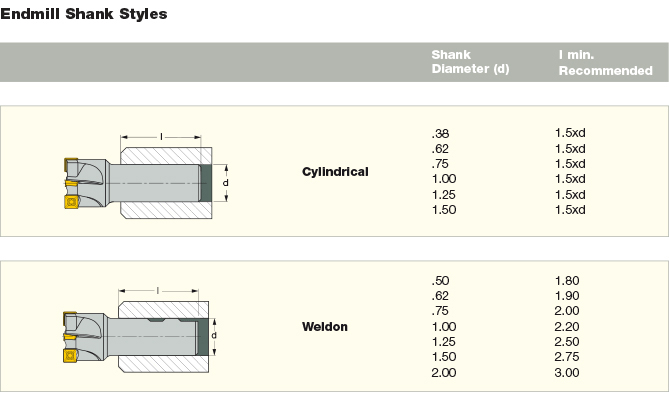

| Shank Type | Weldon | Unit | I |
Product Features
| FamilyDesc | Endmills with coolant holes for helical threading inserts | COO | Israel |
| Remarks | ISCAR can provide special contour inserts on request. For Adaptation Click on More Info |
Shipping Info
PackageWeight
0.7738
