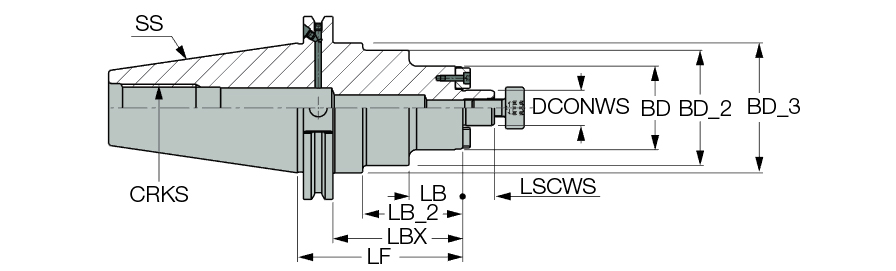

| Connection Diameter Machine Side (DCONMS) | 50″ | Tool Type | DIN 69871 |
| Connection Diameter Workpiece Side (DCONWS) | 1-1/4″ | Measurement Type | Inch |
| Shank Size (SS) | 50 | Body Material | Steel |
| Functional Length (LF) | 4″ | Connection Code Machine Side (CCMS) | CAT |
| Coolant Supply Property (CSP) | External | Unit | I |
| Clamping Length Workpiece Side (LSCWS) | 0.669″ |
Product Features
| FamilyDesc | ISO 3937 Shell mill holders with Caterpillar form AD tapere d shanks. | FamilyName | CAT-SEM-ISC4504197 -I |
| COO | India | BrandName | Iscar |
Shipping Info
PackageWeight
11.596
Name

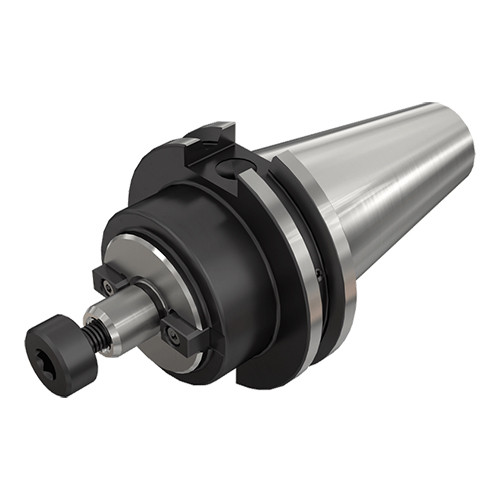

Shell Mill Holders
FamilyName
CAT-SEM-ISC4504197 -I
BrandName
Iscar
