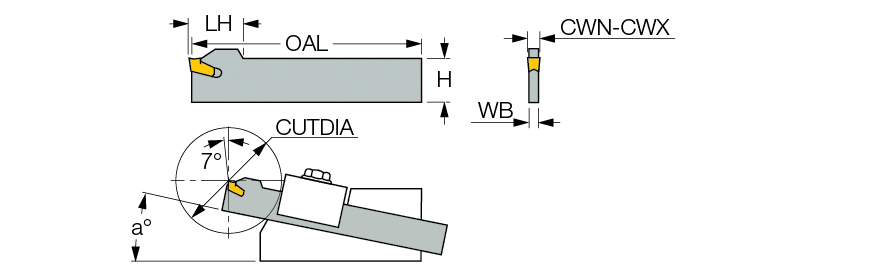

| Shank Height (H) | 17.1 mm | Body Material | Steel |
| Body Width (WB) | 2.4 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 2.7 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 60 mm |
| Cutting Width Maximum (CWX) | 3.53 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 110 mm | Measurement Type | Metric |
| Head Length (LH) | 20 mm | Tool Assembly Length (LTA) | 30 mm |
| Application | | Ext. Grooving | Parting | | Unit | M |
Product Features

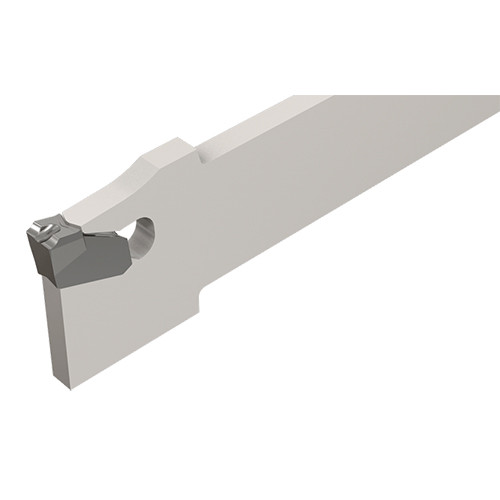

| FamilyDesc | Replacement SELF-GRIP blades for HSS and brazed parting tools. | FamilyName | SGFS |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.0590
Name
Parting Off Indexable Holders
FamilyName
SGFS
BrandName
Iscar
