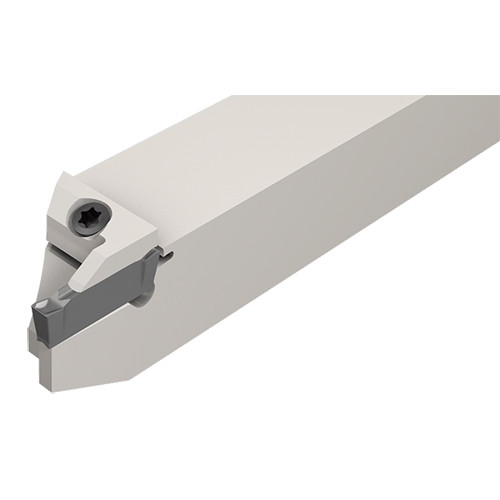

DGTR 16B-1.5D25SH
Parting and grooving short head tools for CNC and Swiss automatics.
Price: Log in For Price
| Shank Height (H) | 16 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 16 mm | Body Material | Steel |
| Body Width (WB) | 1.2 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 1 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 25.4 mm |
| Cutting Width Maximum (CWX) | 1.5 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Head Length (LH) | 19.5 mm | Tool Assembly Length (LTA) | 29.5 mm |
| Overall Height (OAH) | 19.7 mm | Unit | M |
Product Features
| FamilyDesc | Parting and grooving short head tools for CNC and Swiss automatics. | FamilyName | DGTR/L-B-D-SH |
| Remarks | DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.2510
Name
Parting Off Indexable Holders
FamilyName
DGTR/L-B-D-SH
BrandName
Iscar
Related Documentation

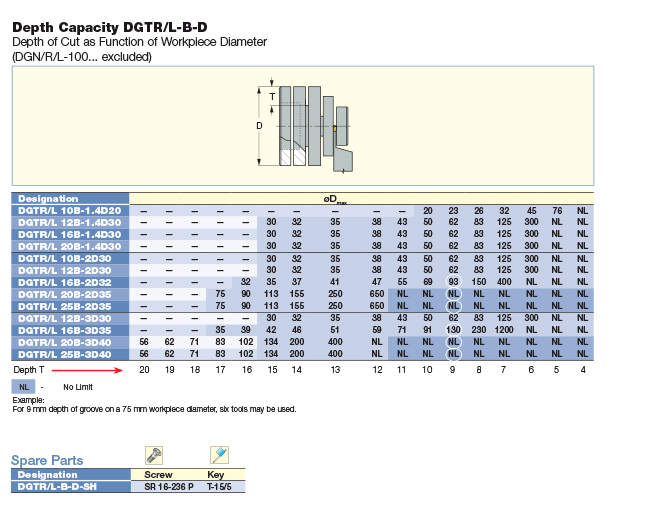

DG..1.0 insert can be mounted into pocket sizes 2 and 3. For DGN/R/L 1 mm inserts' depth capacity table and modification instructions for the holder pocket, see below.
