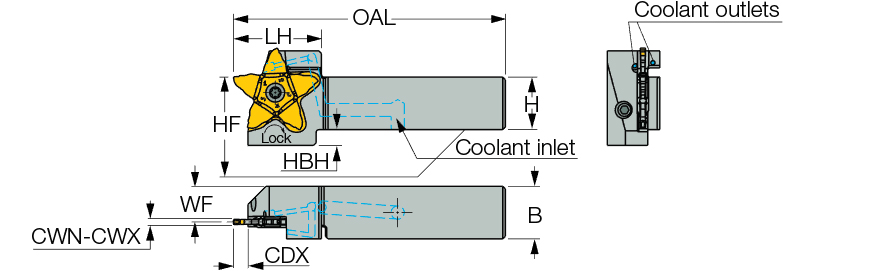

| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Minimum (CWN) | 1.5 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 4 mm | Functional Width (WF) | 13.55 mm |
| Overall Length (OAL) | 103.5 mm | Head Bottom Offset Height (HBH) | 6 mm |
| Head Length (LH) | 33.5 mm | Tool Assembly Length (LTA) | 45.5 mm |
| Cutting Depth Maximum (CDX) | 10 mm | Unit | M |
| Application | | Ext. Grooving | Parting | |
Product Features

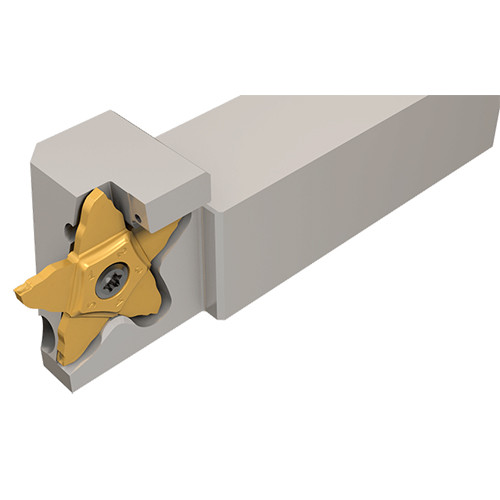

| FamilyDesc | Grooving, parting and recessing tools carrying PENTA inserts with bottom inlets for high-pressure coolant. | FamilyName | PCHR/L-34-JHP-MC-ISC3328563 -M |
| Remarks | For more details, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.756
Name
Parting Off Indexable Holders
FamilyName
PCHR/L-34-JHP-MC-ISC3328563 -M
BrandName
Iscar
