TGBHR 32-8-JHP

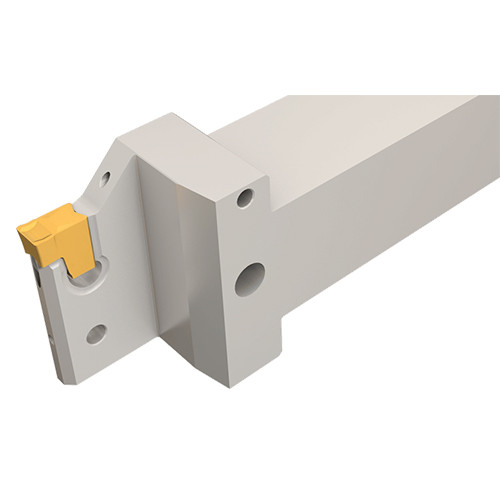

SUMO-GRIP tools with channels for high-pressure coolant and very rigid clamping. Recommended for grooving, turning and parting at very high feed rates and interrupted cuts. Excellent tool and pocket life.
Price: Log in For Price

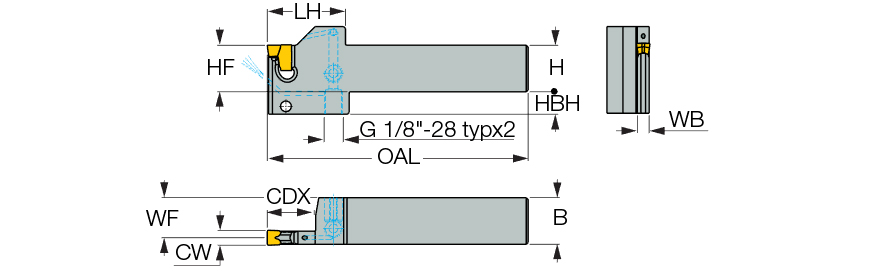

| Cutting Width Minimum (CWN) | 8 mm | Overall Length (OAL) | 170 mm |
| Cutting Width Maximum (CWX) | 8 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Cutting Depth Maximum (CDX) | 25 mm | Body Material | Steel |
| Shank Height (H) | 32 mm | Tool Type | Parting & Grooving Tools |
| Shank Width (B) | 32 mm | Measurement Type | Metric |
| Functional Width (WF) | 28.5 mm | Unit | M |
| Head Length (LH) | 42 mm |
Product Features
| FamilyDesc | SUMO-GRIP tools with channels for high-pressure coolant and very rigid clamping. Recommended for grooving, turning and parting at very high feed rates and interrupted cuts. Excellent tool and pocket life. | FamilyName | TGBHR/L-JHP |
| Remarks | For user guide, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
1.5960
Name
Groove/Turn Indexable Holders
FamilyName
TGBHR/L-JHP
BrandName
Iscar
