SD FM-S-A-L5.00-W125-SP17

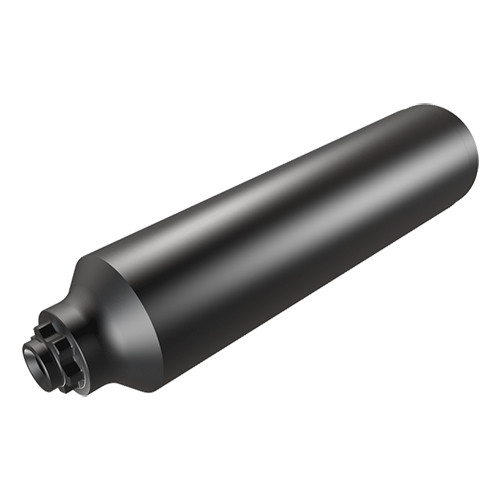

Stepped cylindrical shanks for interchangeable solid carbide face milling heads.
Price: Log in For Price

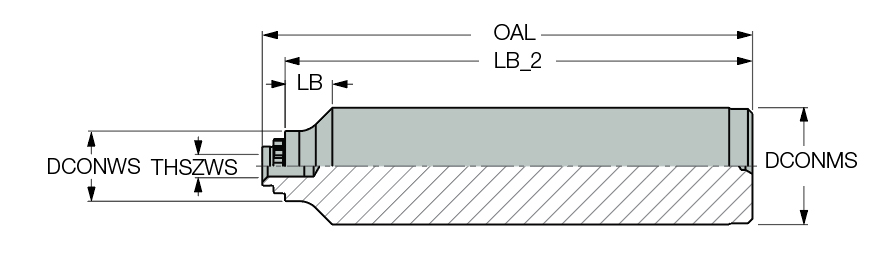

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M6x0.5 | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Overall Length (OAL) | 5.236″ | Connection Code Machine Side (CCMS) | Weldon |
| Body Length (LB) | 0.492″ | Unit | I |
| Functional Length (LF) | 4.095″ |
Product Features
| FamilyDesc | Stepped cylindrical shanks for interchangeable solid carbide face milling heads. | FamilyName | SD FM-S-A-SP |
| Remarks | Apply lubricant to the clamping screw | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
1.8850
Name
Solid End Mill Shanks
FamilyName
SD FM-S-A-SP
BrandName
Iscar
