D3N 135-108-16A-8D

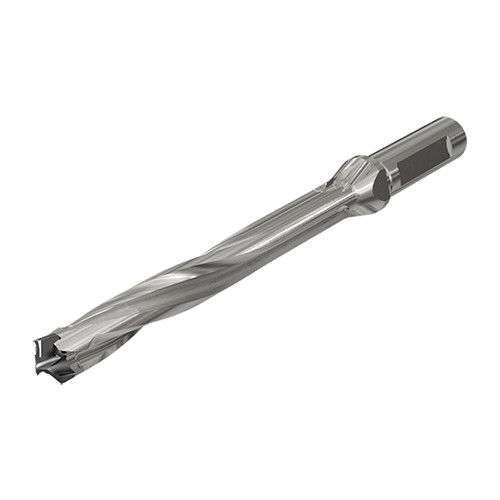

Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 8xD
Price: Log in For Price

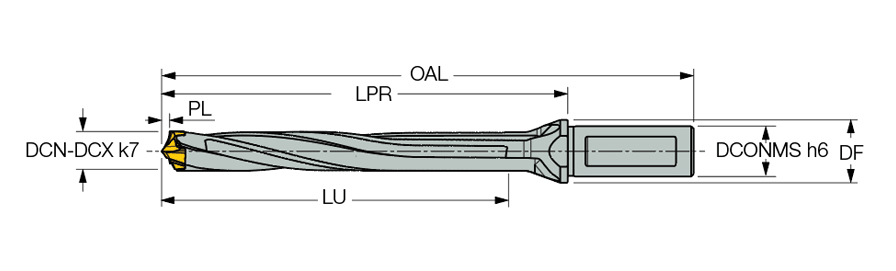

| Cutting Diameter (DC) | 13.5 mm | Overall Length (OAL) | 183.8 mm |
| Usable Length (LU) | 110.91 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Master Insert Identification (MIID) | H3P 135IQ |
| Insert Seat Size Code (SSC) | 13 | Point Length (PL) | 2.91 mm |
| Cutting Diameter Minimum (DCN) | 13.5 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 13.9 mm | Flange Diameter (DF) | 20 mm |
| Protruding Length (LPR) | 135.8 mm | Unit | M |
Product Features
| FamilyDesc | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 8xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
PackageWeight
0.1980
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
