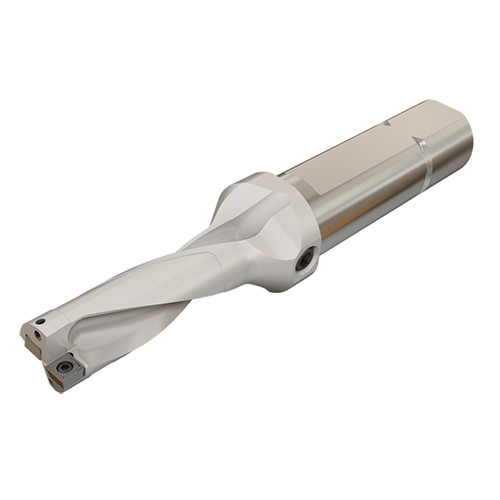

DR1500-4500-150-12-3D-N
DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD.
Price: Log in For Price

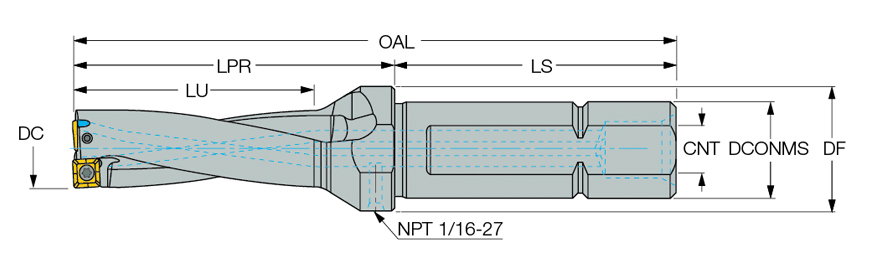

| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 4-1/2″ | Cutting Diameter Maximum (DCX) | 1.65″ |
| Application | | Drilling | | Flange Diameter (DF) | 1.969″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMT 120408-DT |
| Protruding Length (LPR) | 5.96″ | Body Material | Steel |
| Shank Length (LS) | 3″ | Decimal Equivalent | 1.5″ |
| Functional Length (LF) | 5.915″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 8.96″ | Unit | I |
Product Features
| FamilyDesc | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 3xD. | COO | Israel |
| Remarks | Hole tolerance D+.009/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
PackageWeight
3.4105
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
