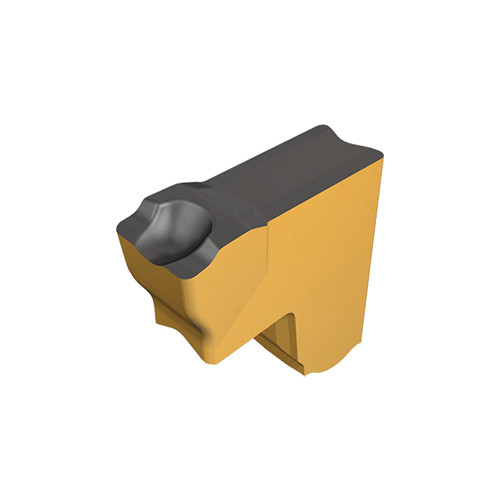

TAG N2UT IC830
A chipformer for use at low feeds. Recommended for Cr-Ni alloys (especially in the bearing industry), ductile materials and low carbon steel. The narrow chipformer design ensures short deformed chips.
Price: Log in For Price

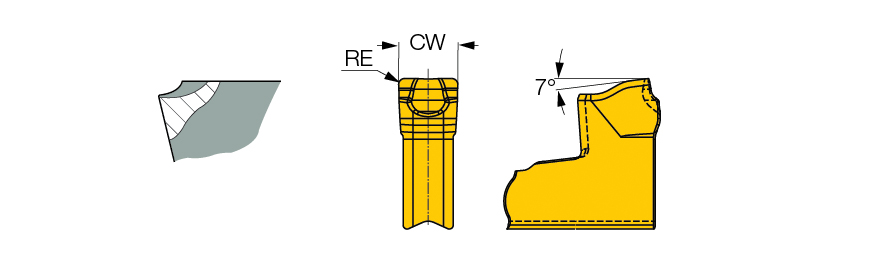

| Cutting Width (CW) | 2 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.2 mm | Max. Grooving Feed (fg(max)) | 0.1 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.04 mm | Min. Grooving Feed (fg(min)) | 0.03 mm/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | AlTiN+TiN | Measurement Type | Metric |
| Grade | IC830 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.04 mm |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | | Unit | M |
Product Features
| FamilyDesc | A chipformer for use at low feeds. Recommended for Cr-Ni alloys (especially in the bearing industry), ductile materials and low carbon steel. The narrow chipformer design ensures short deformed chips. | FamilyName | TAG N-UT |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.0020
Name
Parting Off Indexable Inserts
FamilyName
TAG N-UT
BrandName
Iscar
