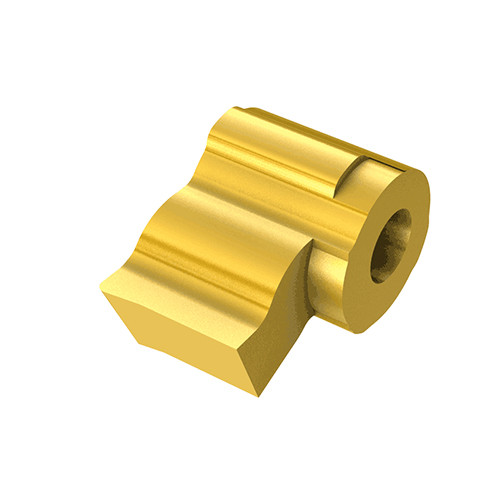

UMGR 4.0-0.1 IC508
Miniature indexable inserts, used for 4 mm min. turning diameter. Designed for fast, easy and secure indexing.
Price: Log in For Price

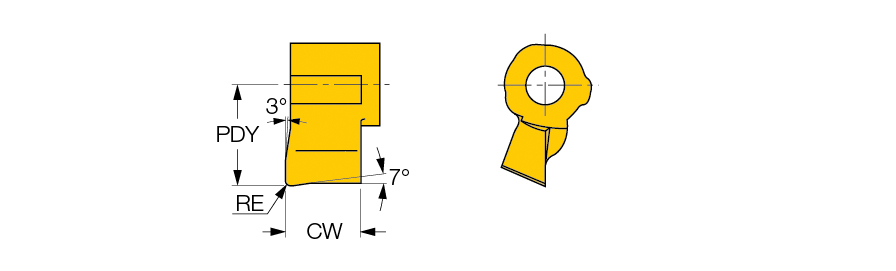

| Cutting Width (CW) | 1.63 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.1 mm | Chip Breaker Type | M |
| Clearance Angle Major (AN) | 7 Degrees | Insert Style | UMGR |
| Minimum Bore Diameter (DMIN) | 4 mm | Measurement Type | Metric |
| Coating | TiCN+TiN | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC508 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Int. Boring and Profiling | |
Product Features
| FamilyDesc | Miniature indexable inserts, used for 4 mm min. turning diameter. Designed for fast, easy and secure indexing. | FamilyName | UMGR |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.0016
Name
Groove/Turn Indexable Inserts
FamilyName
UMGR
BrandName
Iscar
