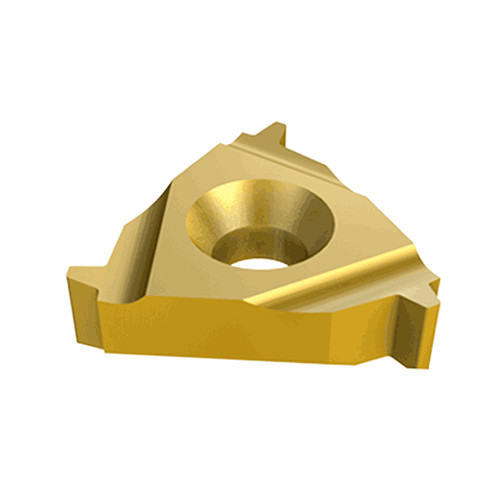

22IR 5 STACME IC50M
Internal STUB ACME laydown threading inserts, for control valves and shallow ACME profile when normal ACME is too deep due to wall thickness.
Price: Log in For Price
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | |

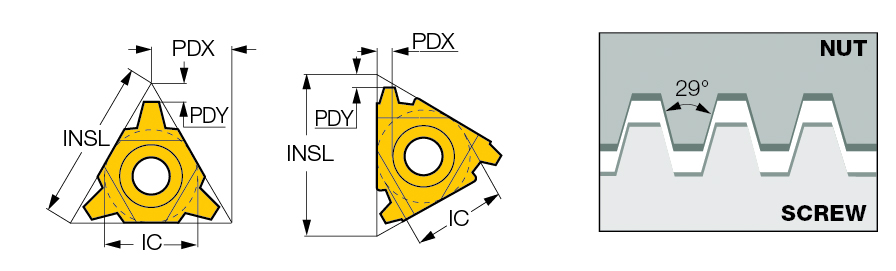

| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 22 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 5 | Measurement Type | Metric |
| Grade | IC50M | Body Material | Carbide |
| Coating | Uncoated | Thread Form Type (THFT) | STAC29 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Internal Threading lay down | | Profile Distance EY (PDY) | 2 mm |
Product Features
| FamilyDesc | Internal STUB ACME laydown threading inserts, for control valves and shallow ACME profile when normal ACME is too deep due to wall thickness. | FamilyName | IR/L-STACME |
| Remarks | For Insert Identification System, click on More Info Tolerance: Class 2G | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0108
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-STACME
BrandName
Iscar
