C4 SIR-17070-16

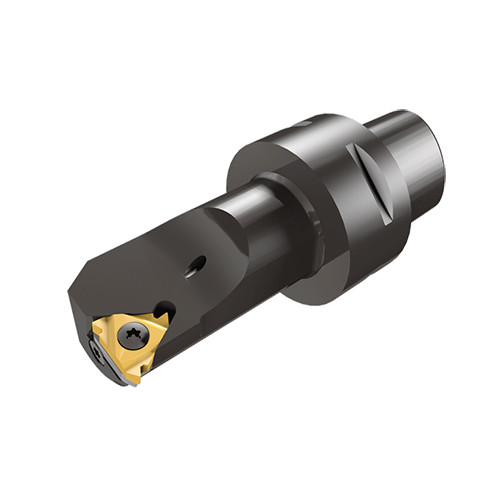

Internal threading bars with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks.
Price: Log in For Price

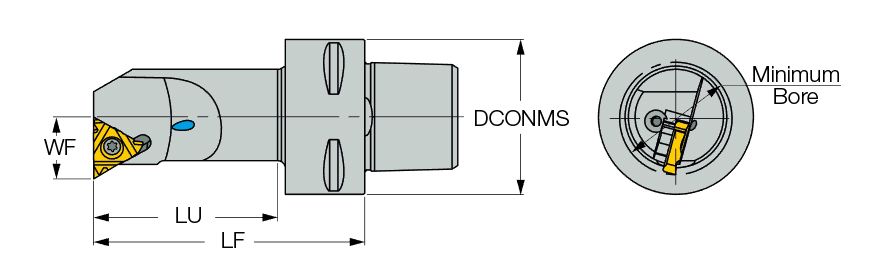

| Connection Diameter Machine Side (DCONMS) | 40 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 29 mm | Tool Type | Tapered Shank Turning Tools |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Application | | Int. Grooving | Internal Threading lay down | |
Product Features
| FamilyDesc | Internal threading bars with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks. | FamilyName | C#-SIR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.4530
Name
Laydown Threading Indexable Holders
FamilyName
C#-SIR/L
BrandName
Iscar
