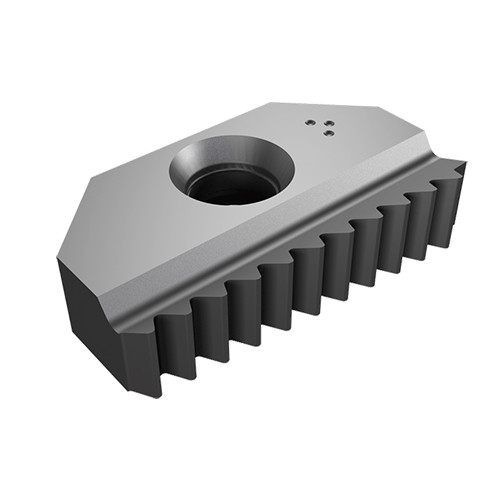

MT LNHT 2104 11.5NPT 908
External and internal NPT full profile thread milling inserts for steam, gas and water pipes
Price: Log in For Price
| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 2.209 mm | Coating | TiAlN |
| Threads per Inch (TPI) | 11.5 | Tool Type | Threading Regular Inserts |
| Insert Length (INSL) | 21 mm | Measurement Type | Metric |
| Insert Width (W1) | 12.6 mm | Body Material | Carbide |
| Insert Thickness Total (S1) | 4.8 mm | Thread Form Type (THFT) | NPT60 |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Type (TTP_DF2) | EXT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Grade | IC908 |
Product Features
| FamilyDesc | External and internal NPT full profile thread milling inserts for steam, gas and water pipes | COO | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. Internal tolerance: ANSI/ASME B1.20.1 Standard NPT External tolerance: ANSI/ASME B1.20.1 Standard NPT |
Shipping Info
PackageWeight
0.0180
