TPG UNC-1-8-M HEST

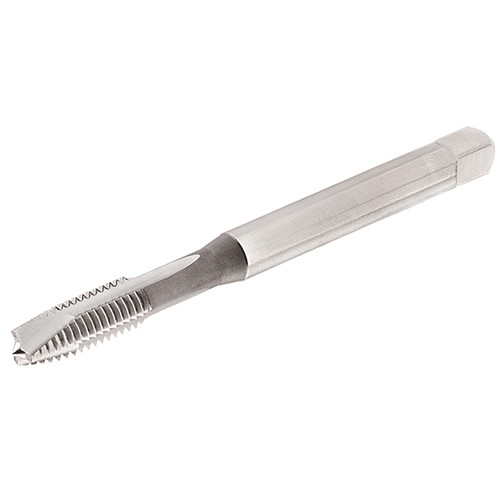

HSS gun point machine taps - unified coarse threads for a wide range of materials.
Price: Log in For Price

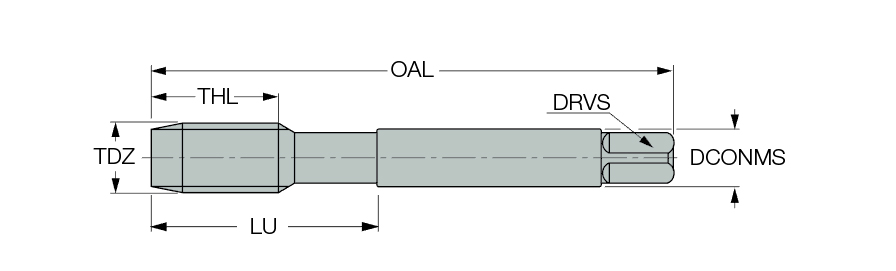

| Thread Diameter Size (TDZ) | 1″ | Standard | DIN 376 |
| Thread Pitch (TP) | 3.125 mm | Tool Type | Machine Through Hole Taps |
| Threads per Inch (TPI) | 8 Threads/" | Coating | Steam tempered |
| Thread Standard | THFT | | Drive Size (DRVS) | 16 mm |
| Overall Length (OAL) | 160 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 36 mm | Grade | HEST |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Thread Size | 1 - 8 |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Thread Form Type (THFT) | UN60 |
| Cutting Edge Material | HSS | Unit | M |
Product Features
| FamilyDesc | HSS gun point machine taps - unified coarse threads for a wide range of materials. | COO | Korea |
Shipping Info
PackageWeight
0.3980
