IHP 2381-BD IC954
Exchangeable drilling heads for DCN drills for machining construction beams and structural steel materials
Price: Log in For Price

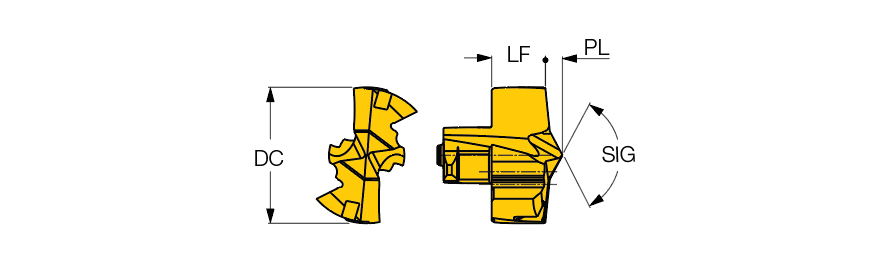

| Cutting Diameter (DC) | 23.81 mm | Measurement Type | Metric |
| Applicable Material | | Steel | | Point Length (PL) | 2.9 mm |
| Application | | Drilling | | Point Angle (SIG) | 128 Degrees |
| Grade | IC954 | Coating | TiAlN |
| Tool Type | Drilling Heads | Body Material | Carbide |
| Insert Seat Size Code (SSC) | 23.0 | Unit | M |
| Functional Length (LF) | 9.3 mm |
Product Features
| FamilyDesc | Exchangeable drilling heads for DCN drills for machining construction beams and structural steel materials | COO | Israel |
| Remarks | Intermediate sizes can be supplied on request |
Shipping Info
PackageWeight
0.0420
