| Application | | Chamfering | Countersinking | Drill Mill | Drilling | Slanted Shoulder & Chamfer | | Coating | TiAlN |

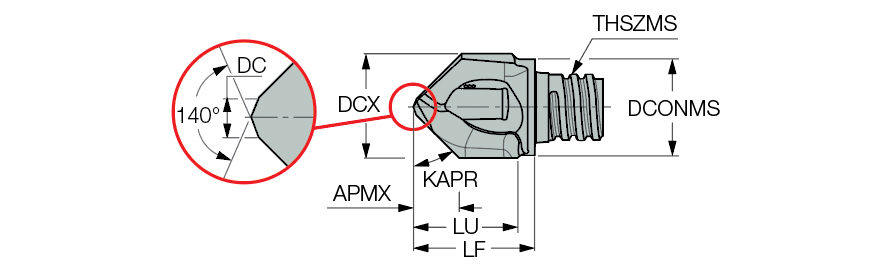

| Cutting Diameter (DC) | 1.2 mm | Profile Angle (PRFA) | 140 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 60 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 8 mm | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 6.08 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 7.6 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 10.5 mm | Unit | M |
| Grade | IC908 |
Product Features

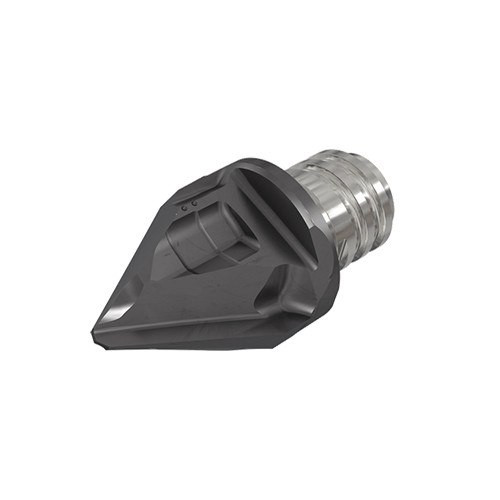

| FamilyDesc | Interchangeable 2 flute solid carbide heads for chamfering, countersinking and spot drilling. | FamilyName | MM HCD |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0120
Name
Solid End Mill Heads
FamilyName
MM HCD
BrandName
Iscar
