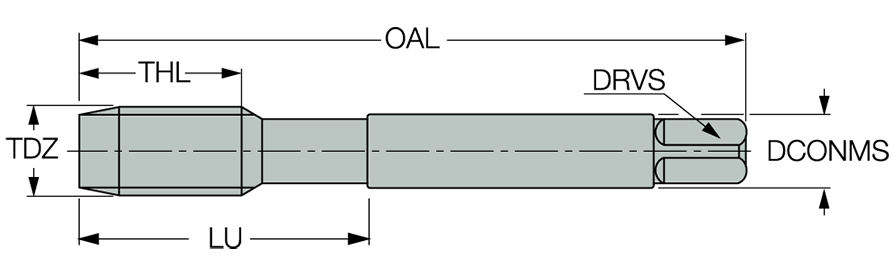

| Thread Size | M20 × 2.5 | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Thread Diameter Size (TDZ) | M20 | Thread Cutting Part Length (THL) | 30 mm |
| Thread Pitch (TP) | 2.5 mm | Drive Size (DRVS) | 12 mm |
| Overall Length (OAL) | 140 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Grade | PMTC |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Unit | M |
Product Features
| COO | Hungary |
Shipping Info
PackageWeight
0.2200
