TPFN MF-12X1.5-F PMTC

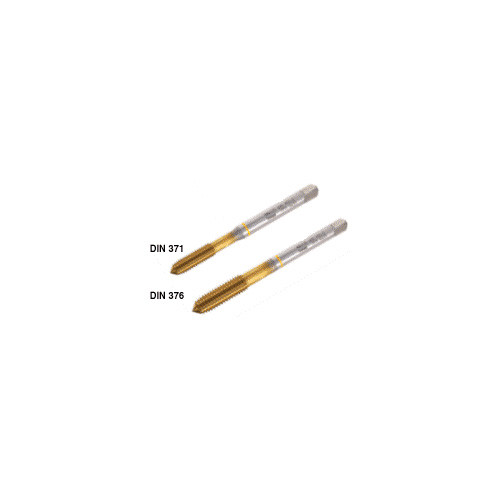

PM Cold Forming Machine Taps - ISO Metric Fine Threads, According to DIN 13
Price: Log in For Price
| Thread Diameter Size (TDZ) | MF12 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 1.5 mm | Drive Size (DRVS) | 7 mm |
| Thread Standard | THFT | | Measurement Type | Metric |
| Overall Length (OAL) | 100 mm | Grade | PMTC |
| Thread Cutting Part Length (THL) | 18 mm | Thread Size | MF12 × 1.5 |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Body Material | HSS |
| Flute Count (NOF) | 6 | Thread Form Type (THFT) | M60 |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | | Unit | M |
| Standard | DIN 374 |
Product Features
| FamilyDesc | PM Cold Forming Machine Taps - ISO Metric Fine Threads, According to DIN 13 | COO | Hungary |
| Remarks | The material designation HE was recently changed to HENI. HENI and HE are identical products and therefore you may still encounter HE designated items. |
Shipping Info
PackageWeight
0.0600
