ETBI-R.06R10A35/20-4C312 IC902
Solid carbide taper-shaped (Barrel) endmills for 3D profiling. Semi-finishing & finishing applications.
Price: Log in For Price

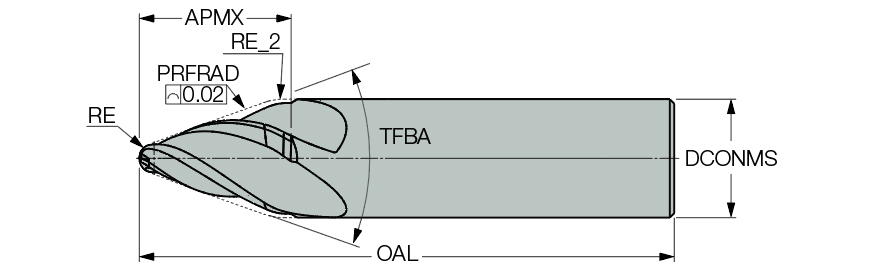

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Application | | Profiling | | Grade | IC902 |
| Cutting Diameter (DC) | 0.112″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 3/8″ | Shank Type | Round |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.312″ | Unit | I |
Product Features
| FamilyDesc | Solid carbide taper-shaped (Barrel) endmills for 3D profiling. Semi-finishing & finishing applications. | FamilyName | ETB |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.0970
Name
Tapered End Mills
FamilyName
ETB
BrandName
Iscar
