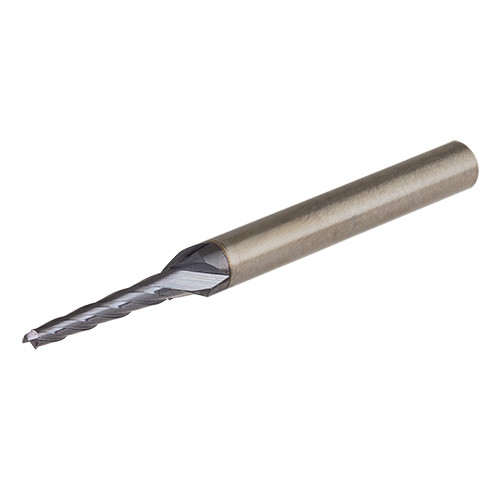

ECT-T4 01-08/1.5C4M45 IC903
4 flute, 25° taper helix solid carbide endmills. Used for rib processing on hardened steel
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Slanted Shoulder & Chamfer | Slotting | | Shank Type | Round |
| Cutting Diameter (DC) | 1 mm | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 8 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Overall Length (OAL) | 45 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Flute Helix Angle (FHA) | 25 Degrees | Maximum Feed per Tooth (fz(max)) | 0.008 mm/tooth |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Minimum Feed per Tooth (fz(min)) | 0.003 mm/tooth |
| Coating | TiAlN | Unit | M |
| Grade | IC903 |
Product Features
| FamilyDesc | 4 flute, 25° taper helix solid carbide endmills. Used for rib processing on hardened steel | FamilyName | ECT-T4 |
| COO | Korea | BrandName | Iscar |
Shipping Info
PackageWeight
0.0100
Name
Tapered End Mills
FamilyName
ECT-T4
BrandName
Iscar
