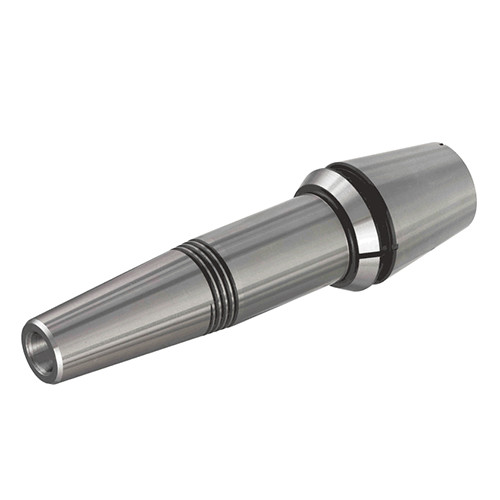

ER25 SRK 5X60 JET2
SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only.
Price: Log in For Price

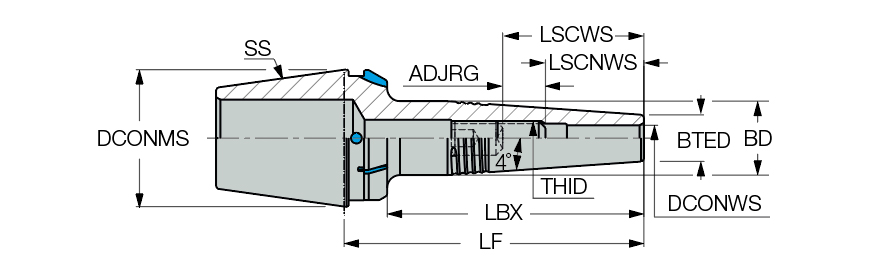

| Connection Diameter Machine Side (DCONMS) | 25 mm | Clamping Length Workpiece Side (LSCWS) | 21 mm |
| Connection Diameter Workpiece Side (DCONWS) | 5 mm | Measurement Type | Metric |
| Shank Size (SS) | ER25 | Tool Type | Spring Collets |
| Body Length (LB) | 44.5 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 60 mm | Unit | M |
| Overall Length (OAL) | 95 mm |
Product Features
| FamilyDesc | SHRINKIN thermal shrinking chuck with three internal cooling jets and an integral ER collet. To be used for carbide tool only. | FamilyName | ER-SRK-JET2 |
| Remarks | For carbide tools only For through tool coolant, preset screw must be removed | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.1500
Name
Shrink Fit Holders
FamilyName
ER-SRK-JET2
BrandName
Iscar
