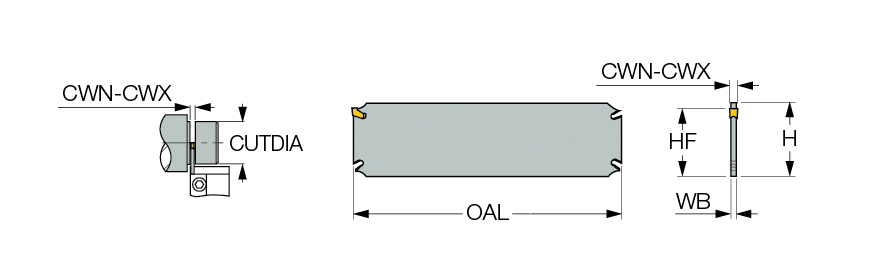

| Shank Height (H) | 150 mm | Body Material | Steel |
| Body Width (WB) | 11.1 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 11.7 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 600 mm |
| Cutting Width Maximum (CWX) | 13 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 610 mm | Measurement Type | Metric |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 302 mm |
| Number of Pocket (NOP) | 4 | Unit | M |
Product Features

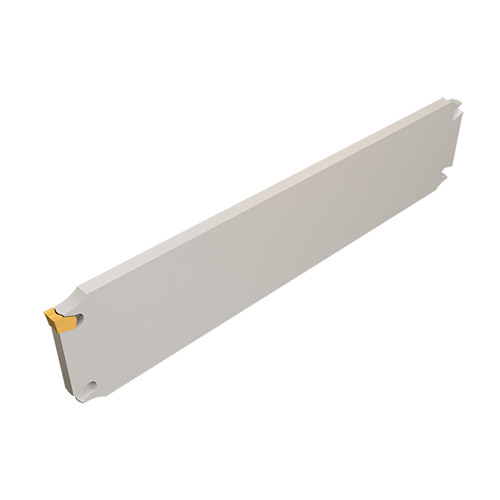

| FamilyDesc | SELF-GRIP, parting and grooving, four-pocket blades. | FamilyName | SGFH (four-pockets) |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
9.3000
Name
Parting Off Indexable Holders
FamilyName
SGFH (four-pockets)
BrandName
Iscar
