EPNDI-C8 188-625C188F2.5 IC02

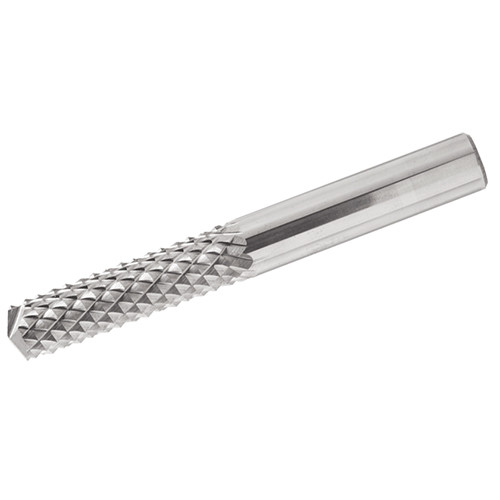

Solid carbide endmill with special cutting edges for drill mill operations, for machining of different kind of composite materials. Enables application of high feed and speed due to excellent chip and heat disposal.
Price: Log in For Price

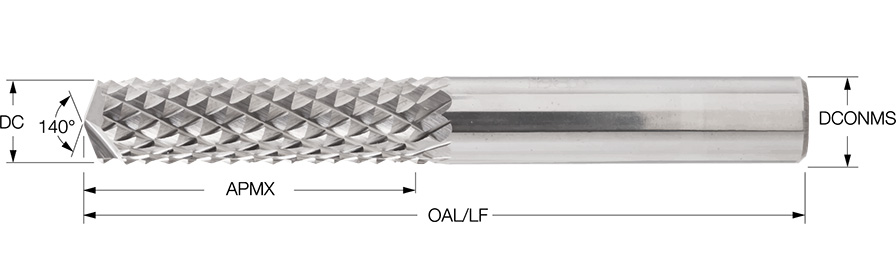

| Cutting Diameter (DC) | 0.188″ | Grade | IC02 |
| Connection Diameter Machine Side (DCONMS) | 0.188″ | Tool Type | Solid Carbide Roughers |
| Depth of Cut Maximum (APMX) | 5/8″ | Maximum Feed per Tooth (fz(max)) | 0.0008 ″/tooth |
| Overall Length (OAL) | 2-1/2″ | Minimum Feed per Tooth (fz(min)) | 0.0002 ″/tooth |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.188″ |
| Flute Count (NOF) | 8 | Measurement Type | Inch |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| End Shape | Square | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Drill Mill | Edging | | Unit | I |
Product Features
| FamilyDesc | Solid carbide endmill with special cutting edges for drill mill operations, for machining of different kind of composite materials. Enables application of high feed and speed due to excellent chip and heat disposal. | FamilyName | EPNDI |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.0434
Name
Square & Corner Radius End Mills
FamilyName
EPNDI
BrandName
Iscar
