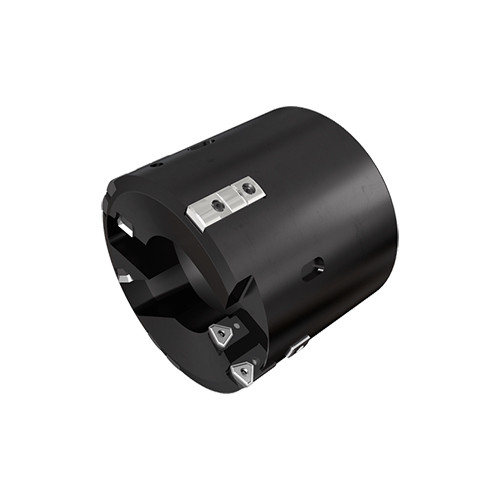

DSTR-IC 258.00-266.99
Single tube trepanning drills with inner single start thread connection, cartridges and adjustable diameter (100-306mm dia.)
Price: Log in For Price

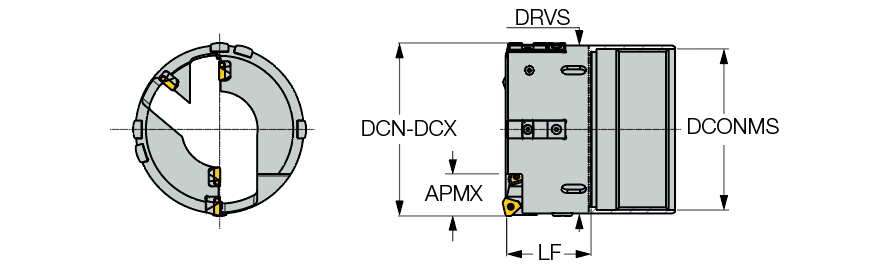

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 258 mm |
| Connection Diameter Machine Side (DCONMS) | 245 mm | Cutting Diameter Maximum (DCX) | 266.99 mm |
| Functional Length (LF) | 209 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Connection Thread Size (Ts) | TS-O39 | Unit | M |
Product Features
| FamilyDesc | Single tube trepanning drills with inner single start thread connection, cartridges and adjustable diameter (100-306mm dia.) | COO | Japan |

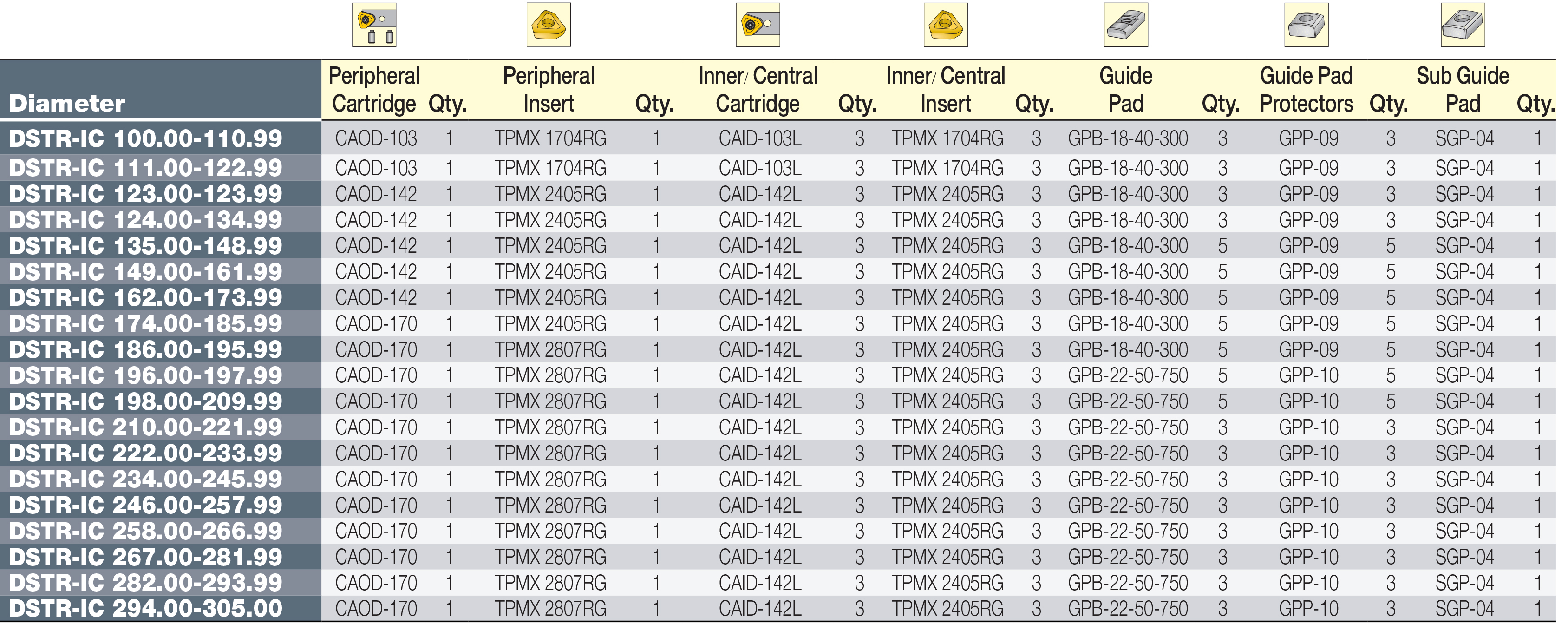

| Remarks | For spare parts and insert information, click on More Info Ordering example: DSTR-IC 120.55 |
