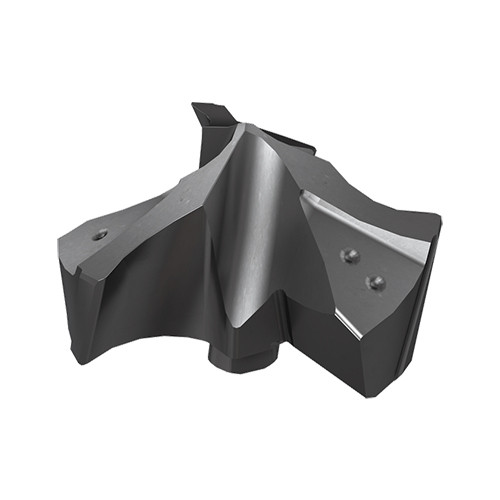

H3P 143-IQ IC908
Exchangeable 3 flute drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.1 mm.
Price: Log in For Price

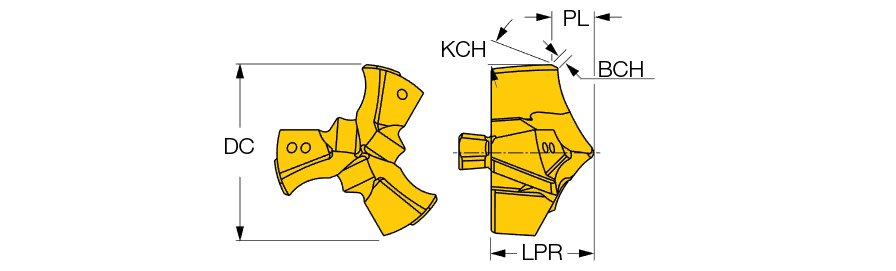

| Cutting Diameter (DC) | 14.3 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Point Length (PL) | 3.1 mm |
| Application | | Drilling | | Point Angle (SIG) | 135 Degrees |
| Grade | IC908 | Coating | TiAlN |
| Protruding Length (LPR) | 8.08 mm | Chamfer Angle | 15 Degrees |
| Insert Seat Size Code (SSC) | 14 | Body Material | Carbide |
| Functional Length (LF) | 4.98 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| FamilyDesc | Exchangeable 3 flute drilling heads for machining carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.1 mm. | COO | Israel |
Shipping Info
PackageWeight
0.0115
