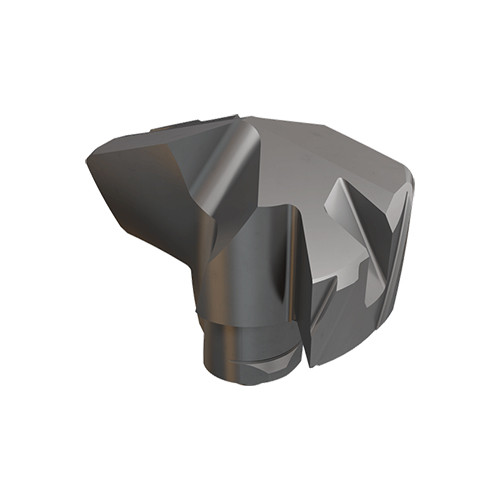

ICP 140-2M IC908
Exchangeable double margin drilling heads for DCN drills, for machining ISO P materials with high surface finish results (up to 1.6 Ra).
Price: Log in For Price

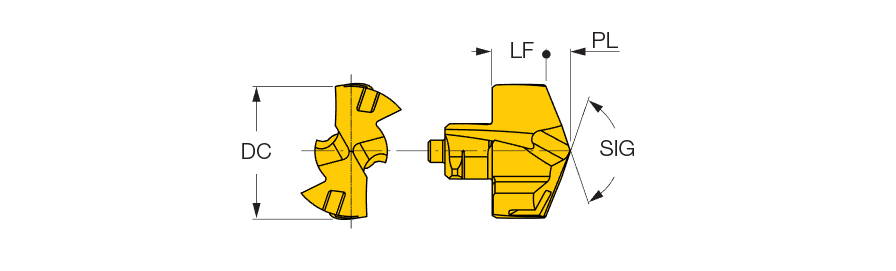

| Cutting Diameter (DC) | 14 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 8.15 mm |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 2.12 mm |
| Grade | IC908 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 14.0 | Body Material | Carbide |
| Functional Length (LF) | 6.03 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| FamilyDesc | Exchangeable double margin drilling heads for DCN drills, for machining ISO P materials with high surface finish results (up to 1.6 Ra). | COO | Israel |
| Remarks | Provides high surface finish of up to 1.6 Ra hole cylindricity and straightness of up to 0.05 mm |
Shipping Info
PackageWeight
0.0135
