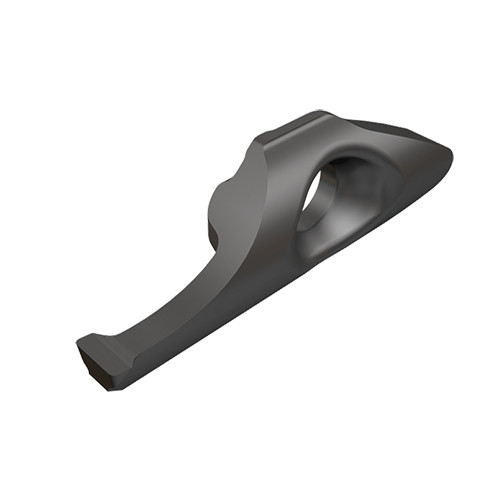

MIFR 15-3.00-0.20 IC908
MINCUT screw-clamped inserts for internal face grooving and turning with uninterrupted chip flow
Price: Log in For Price

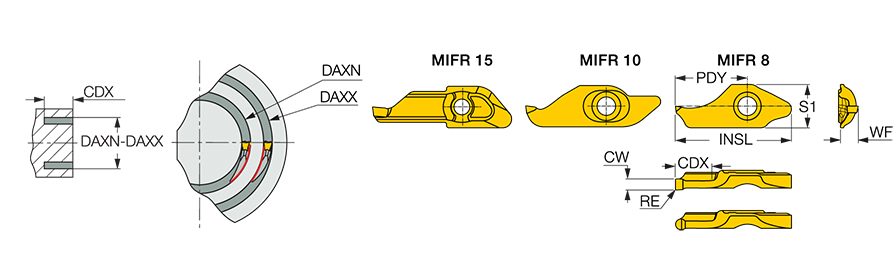

| Cutting Width (CW) | 3 mm | Depth of Cut Maximum (APMX) | 0.7 mm |
| Insert Length (INSL) | 30 mm | Min D.O.C. | 0.2 mm |
| Corner Radius (RE) | 0.2 mm | Axial Groove Outside Diameter Maximum (DAXX) | 60 mm |
| Cutting Depth Maximum (CDX) | 15 mm | Axial Groove Outside Diameter Minimum (DAXN) | 15 mm |
| Insert Thickness Total (S1) | 9 mm | Max. Face Grooving Feed (ffg(max)) | 0.05 mm/rev |
| Cutting Edge Material | Carbide | Min. Face Grooving Feed (ffg(min)) | 0.03 mm/rev |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min. Face Turning Feed (fft(min)) | 0.03 mm/rev |
| Grade | IC908 | Measurement Type | Metric |
| Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | | Coating | TiAlN |
| Tool Type | Face Turn-Groove Inserts | Body Material | Carbide |
| Functional Width (WF) | 5.85 mm | Unit | M |
Product Features
| FamilyDesc | MINCUT screw-clamped inserts for internal face grooving and turning with uninterrupted chip flow | FamilyName | MIFR |

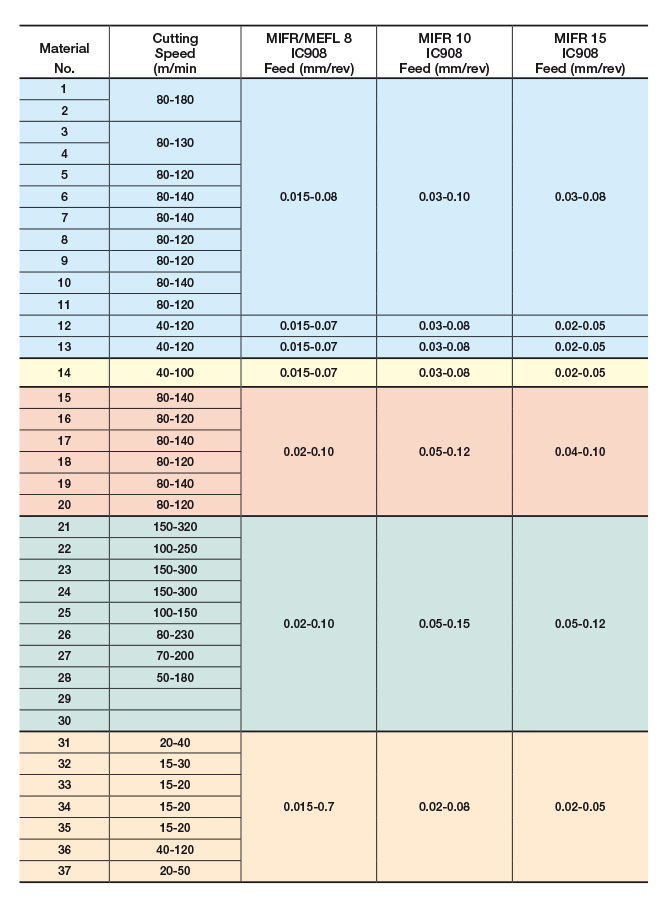

| Remarks | Recommended cutting speeds and feeds can be increased by 20-30% for aluminum, and reduced by 20-30% for titanium and Inconel | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0099
Name
Face Groove/Turn Indexable Inserts
FamilyName
MIFR
BrandName
Iscar
