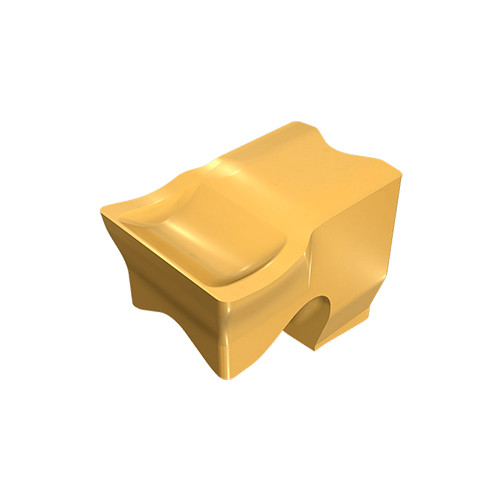

TNF 6M-IQ IC808
Face grooving single-ended inserts for machining stainless steel and high temperature alloys. The inserts are clamped in tangentially oriented pocket tools.
Price: Log in For Price

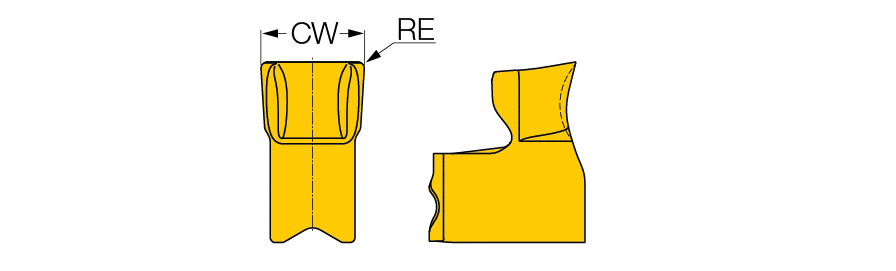

| Cutting Width (CW) | 6 mm | Max. Face Grooving Feed (ffg(max)) | 0.2 mm/rev |
| Corner Radius (RE) | 0.35 mm | Min. Face Grooving Feed (ffg(min)) | 0.12 mm/rev |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN+AlTiN+TiN |
| Grade | IC808 | Body Material | Carbide |
| Application | | Face Grooving | Face Grooving Along Shaft | | Unit | M |
| Tool Type | Face Turn-Groove Inserts |
Product Features
| FamilyDesc | Face grooving single-ended inserts for machining stainless steel and high temperature alloys. The inserts are clamped in tangentially oriented pocket tools. | FamilyName | TNF-M-IQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.0036
Name
Face Groove/Turn Indexable Inserts
FamilyName
TNF-M-IQ
BrandName
Iscar
