TPGN UNC 5/8-11-M HETI
HSSE 5% Co gun point machine taps - unified coarse threads for a wide range of materials
Price: Log in For Price

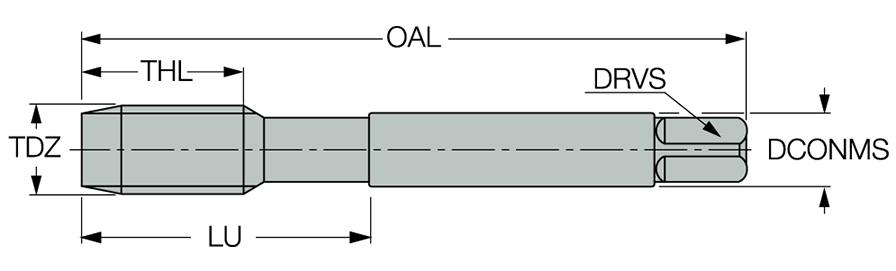

| Thread Diameter Size (TDZ) | UNC 5/8 | Tool Type | Machine Through Hole Taps |
| Threads per Inch (TPI) | 11 | Coating | TiN |
| Overall Length (OAL) | 110 mm | Drive Size (DRVS) | 9 mm |
| Thread Cutting Part Length (THL) | 26 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Grade | HETI |
| Flute Count (NOF) | 4 | Thread Size | UNC 5/8 - 11 |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Body Material | HSS |
| Cutting Edge Material | HSS | Unit | M |
| Standard | DIN 376 |
Product Features
| FamilyDesc | HSSE 5% Co gun point machine taps - unified coarse threads for a wide range of materials | COO | Hungary |
Shipping Info
PackageWeight
0.0990
